Principles of Testosterone and hCG Injection Technique

Buy Lab Tests Online

madman

Super Moderator
Selecting the Devices

There are many different syringes and needles, suiting many different procedures. It is important to choose the needles and syringes carefully according to the type of injection to be administered. For example, the length and gauge of the needle and type of syringe must be suitable for the injection site, viscosity, and volume of medication. The size, age, and condition of the patient are other key factors in the selection process.


The anatomy of the needle
Screenshot (851).png



The anatomy of the syringe
Screenshot (852).png



Guidelines for needle length and gauge selection
Screenshot (853).png

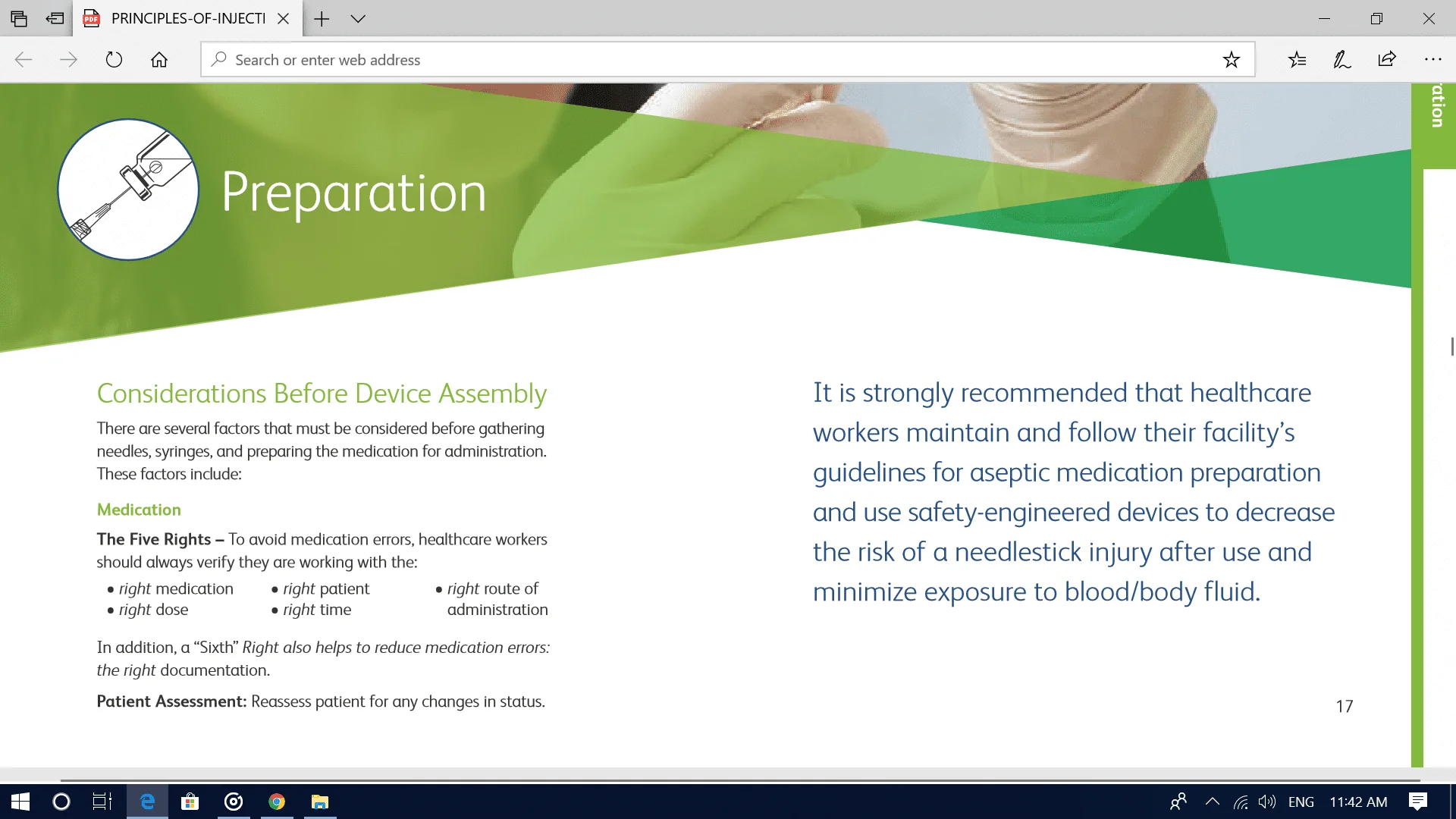

Preparation

Considerations Before Device Assembly

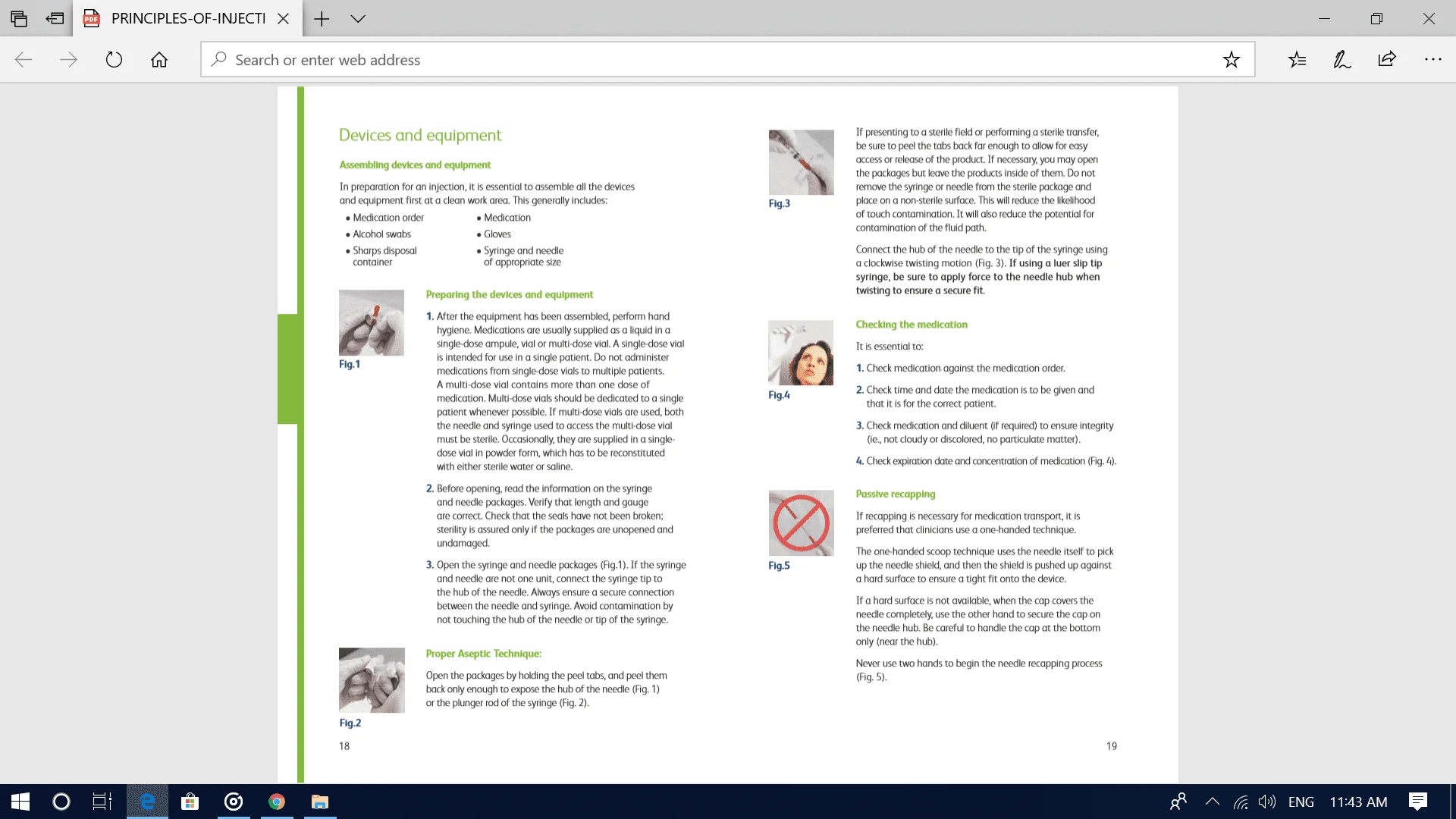

Devices and equipment
Screenshot (855).png



Filling the syringe
Screenshot (856).png





Administration

Injection Routes


Intramuscular
Subcutaneous
Intradermal

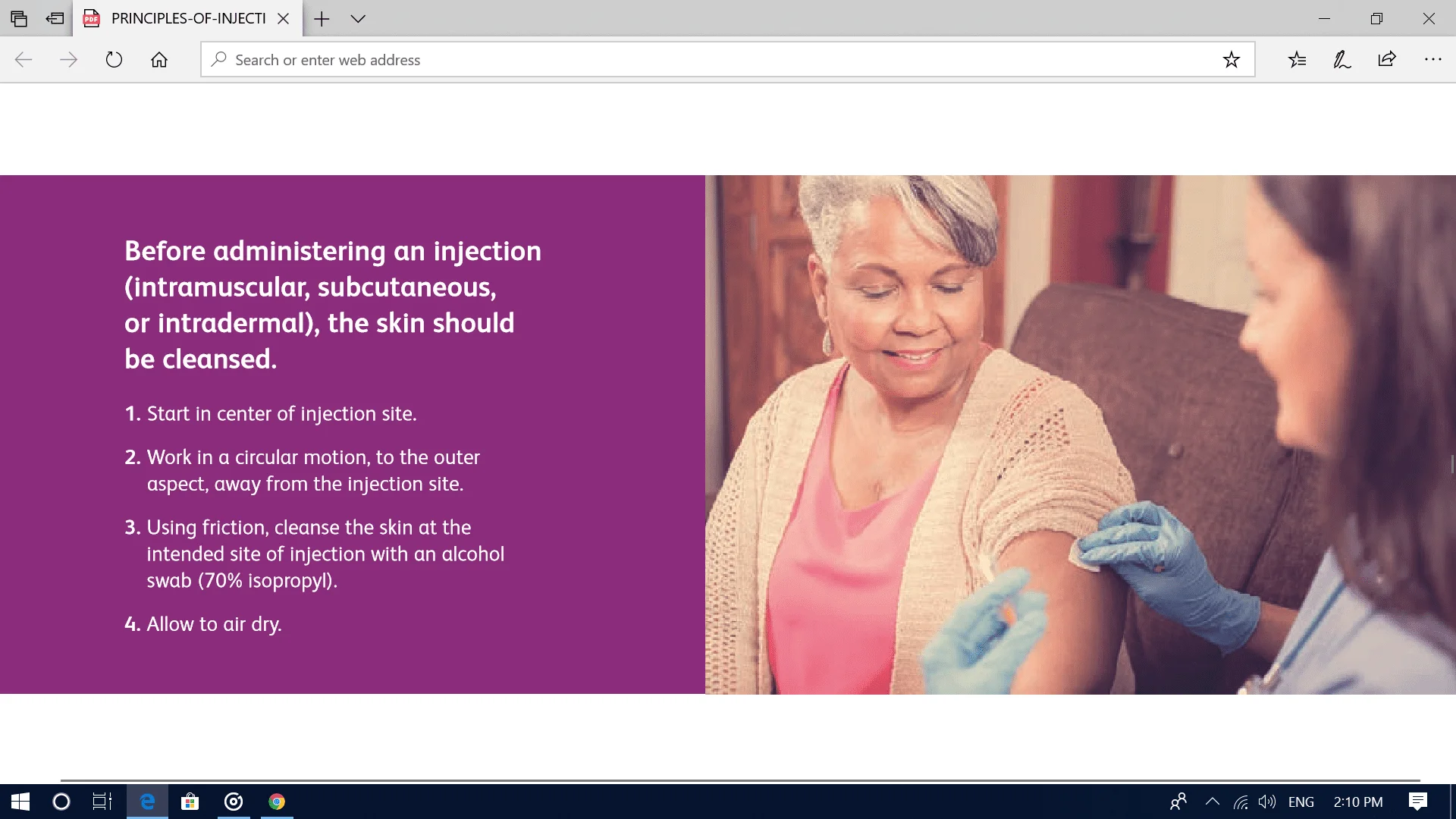

Skin preparation

Screenshot (857).png

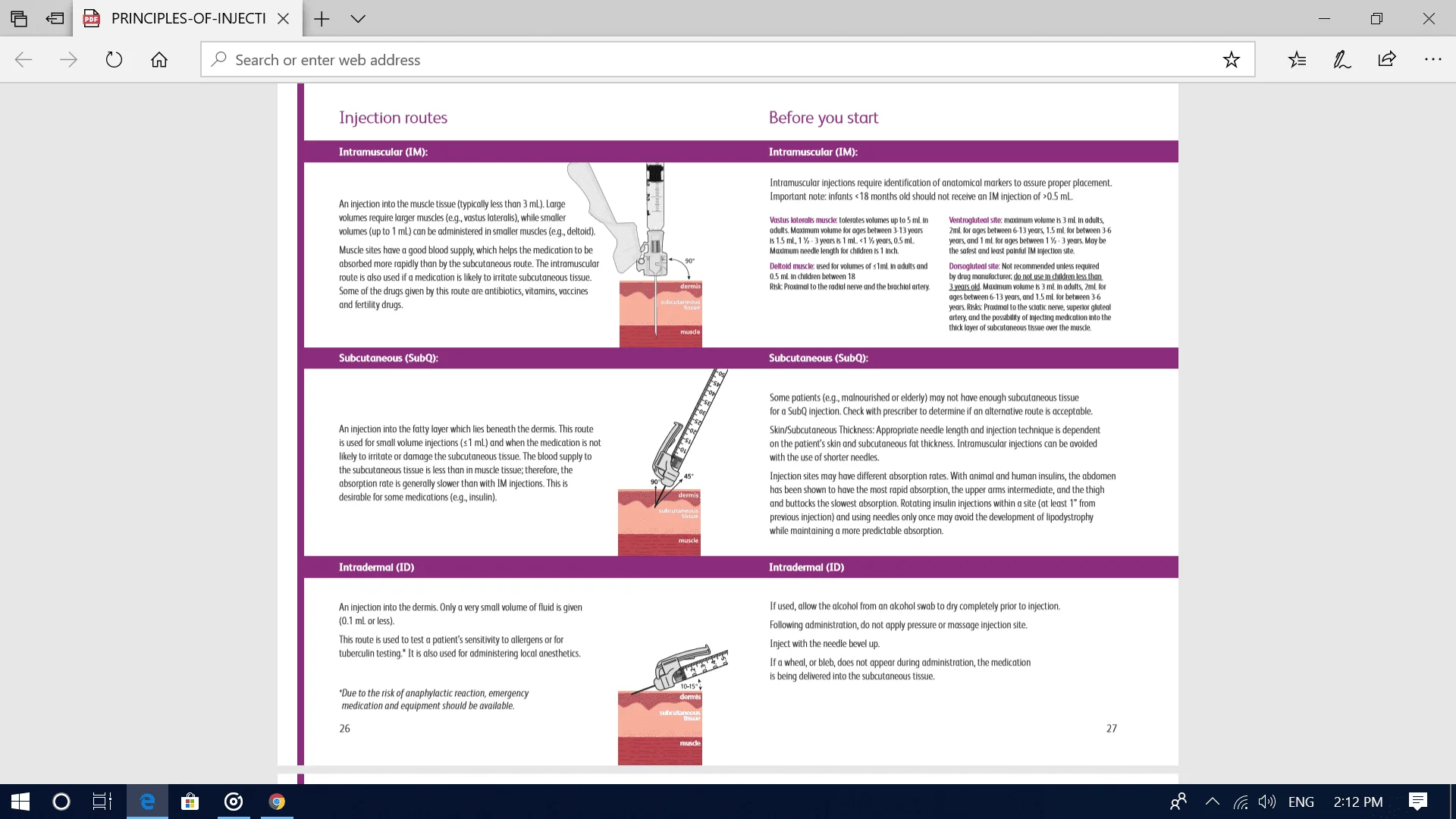

Injection routes Before you start



Injection sites (refer to pages 14 and 15 for needle length)
Screenshot (859).png



Standard injection procedure
Screenshot (859).png

Defy Medical TRT clinic doctor

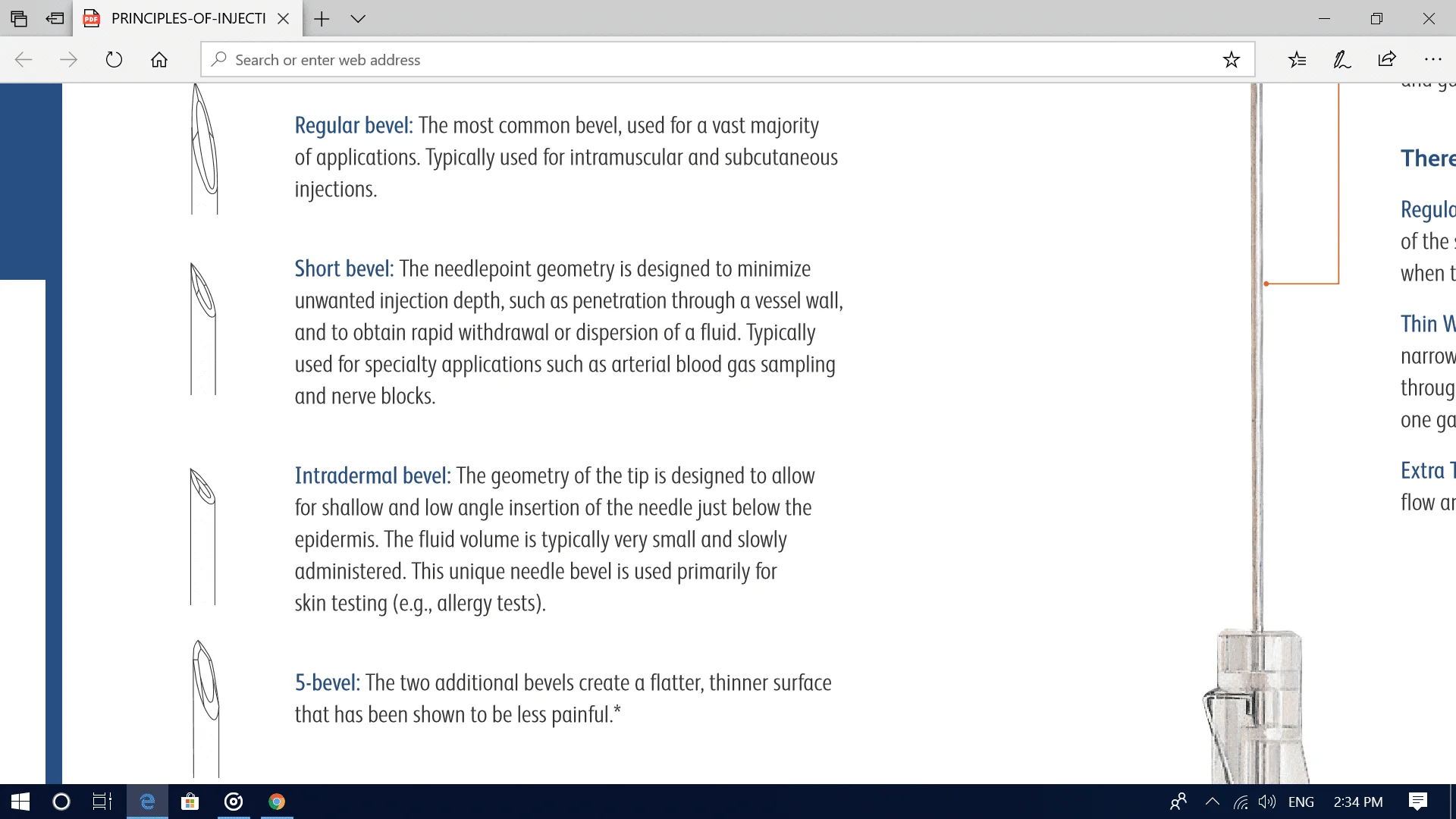

Bevel
The sharpened angular tip at the end of the needle. There are typically four types of bevels used for skin injections.

Regular bevel: The most common bevel, used for a vast majority of applications. Typically used for intramuscular and subcutaneous injections.

Short bevel: The needlepoint geometry is designed to minimize unwanted injection depth, such as penetration through a vessel wall, and to obtain rapid withdrawal or dispersion of a fluid. Typically used for specialty applications such as arterial blood gas sampling and nerve blocks.

Intradermal bevel: The geometry of the tip is designed to allow for shallow and low-angle insertion of the needle just below the epidermis. The fluid volume is typically very small and slowly administered. This unique needle bevel is used primarily for skin testing (e.g., allergy tests).

5-bevel: The two additional bevels create a flatter, thinner surface that has been shown to be less painful.*



Needle
Made of stainless steel, which is siliconized to allow easier penetration, thus minimizing patient discomfort. Available in different lengths and gauges to suit individual clinical and patient needs.

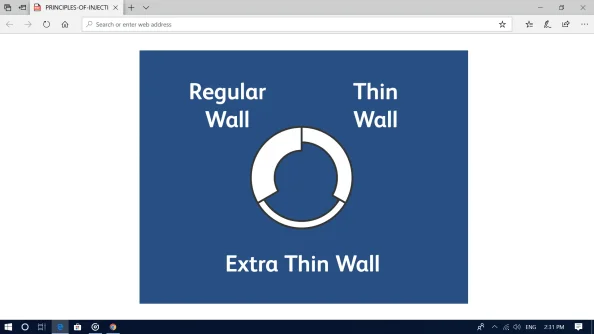

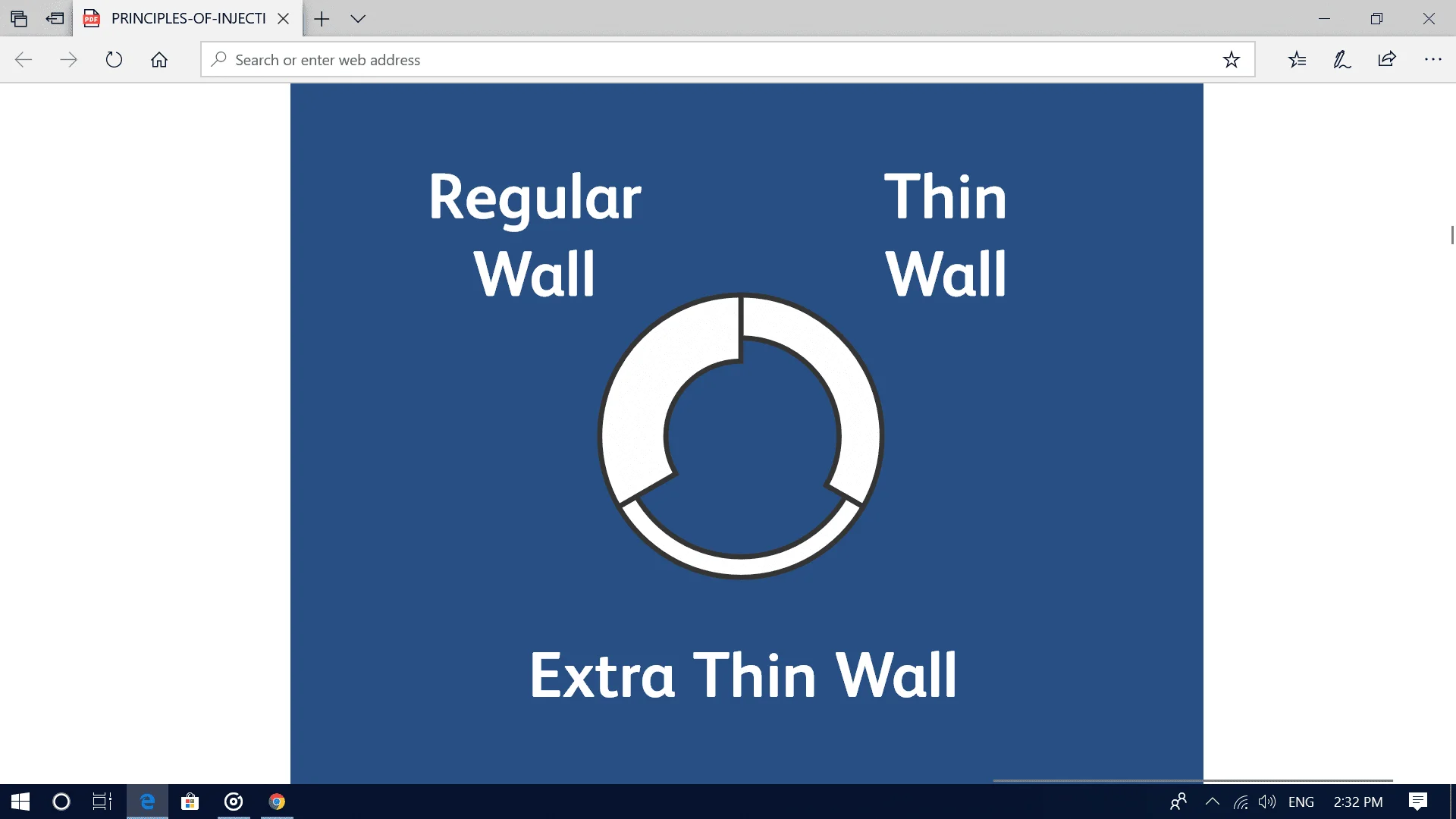

There are three types of needle walls:

Regular Wall:
This is the most common wall thickness. The thickness of the steel wall allows a good flow rate and minimizes flexing when the needle is inserted into a vial stopper or patient.

Thin Wall: As shown in the diagram, the thin wall needle has a narrower steel wall, allowing a greater volume of fluid to pass through it. The flow rate is typically equivalent to that of a needle one gauge larger. This is especially important with very thin needles.

Extra Thin Wall: This has the thinnest steel wall, provides higher flow, and requires less force to deliver medication
.



Attachments

  • Screenshot (861).png
    Screenshot (861).png
    30.7 KB · Views: 326

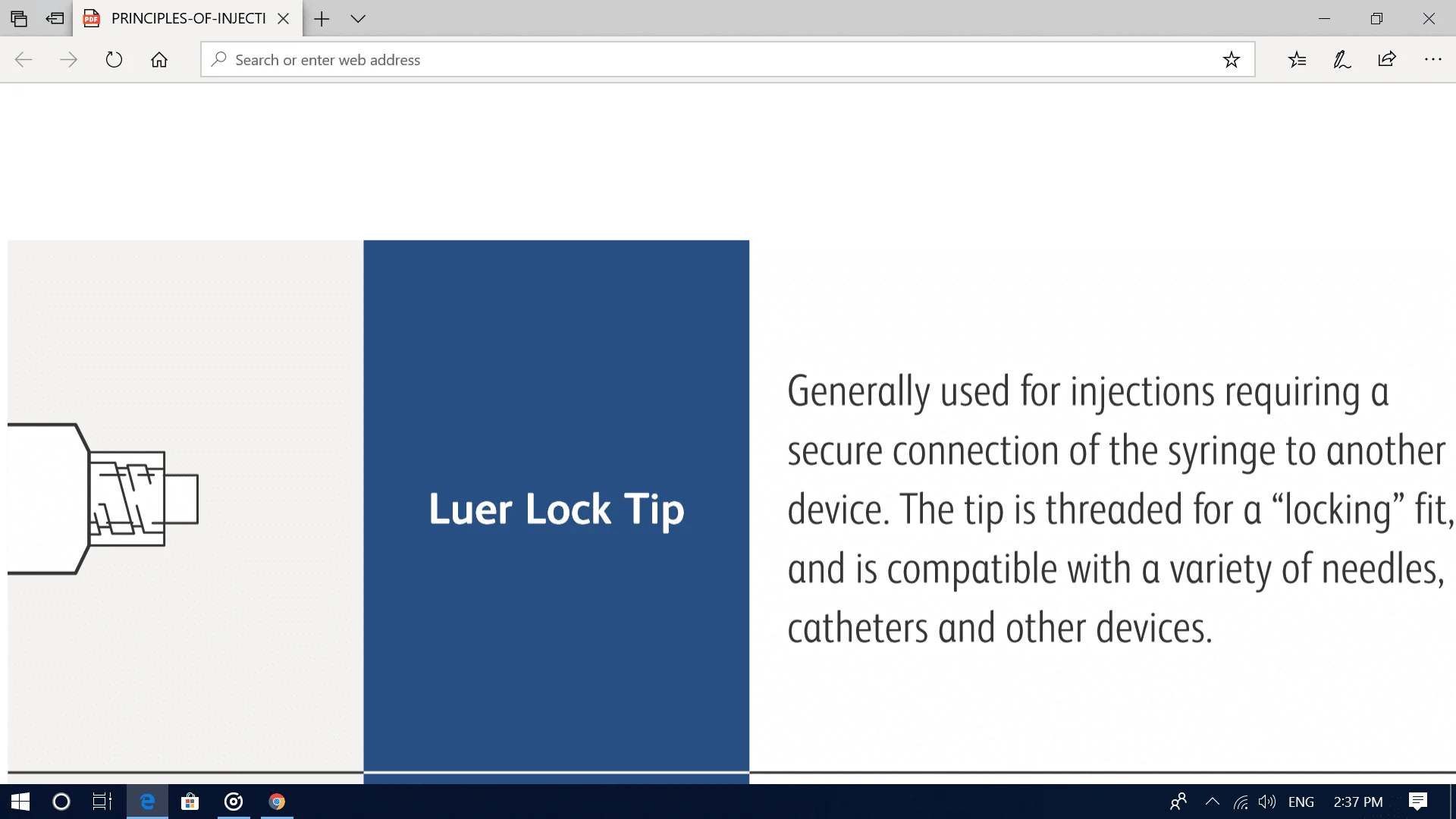

Generally used for injections requiring a secure connection of the syringe to another device. The tip is threaded for a “locking” fit, and is compatible with a variety of needles, catheters and other devices.
Screenshot (864).png





A friction-fit connection that requires the clinician to insert the tip of the syringe into the needle hub or other luer connection in a push-and-twist manner. This will ensure a connection that is less likely to detach. Simply sliding the attaching device onto the syringe tip may not ensure a secure fitting.
Screenshot (865).png





Allows for work requiring closer proximity to the skin. Generally used for venipunctures and aspiration of fluids. (Also see luer slip instructions above.)
Screenshot (866).png





Used for flushing (cleaning) catheters, gastrostomy tubes and other devices. Insert catheter tip securely into catheter or gastrostomy tube. If leakage occurs, refer to your facility’s guidelines.
Screenshot (867).png

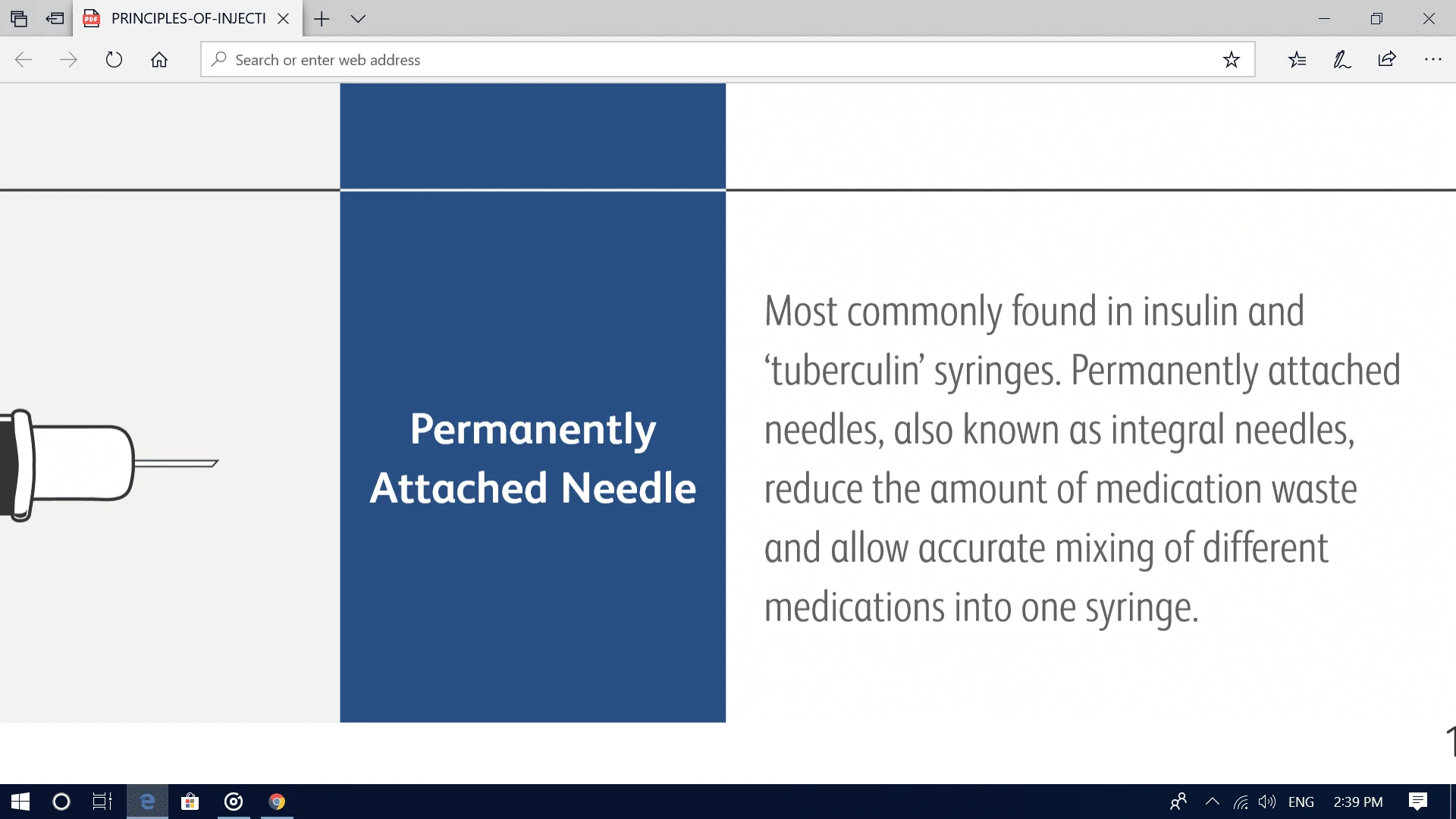

Most commonly found in insulin and ‘tuberculin’ syringes. Permanently attached needles, also known as integral needles, reduce the amount of medication waste and allow accurate mixing of different medications into one syringe.
Screenshot (868).png

PDF


Attachments

  • PRINCIPLES-OF-INJECTION-TECHNIQUE-MPS_HY_Principles-of-injection-technique_IM_EN (1).pdf
    3.1 MB · Views: 336
When I first started TRT, they had me injecting with 22ga needles! I now inject with 25ga, much better!

in 1992, I started with 1 1/2 inch 23 Gauge needles in the glutes (using an 18-inch Gauge needle for loading). I am so glad we have found out that deep injections are not needed in TRT!

It's worth researching the Z-method or Z-technique to reduce wastage and any light bleeding at the injection site. I originally got this info from a College of Nursing training manual, but there are now several sites out there. Namaste.

Thank you for clarifying what “thin wall” and “extra thin wall” needles mean. When I’ve been shopping I’ve just assumed that was some marketing b.s.

When I first started TRT I was using the 1 ml BD U-100 insulin syringes 28 gauge 1/2 inch needle length.

I have been injecting T 150 mg/week (75 mg every 3.5 days) strictly sub-q in my abdominal fat for the 3 years I have been on TRT and have tried various insulin syringes (gauge/needle length) and eventually switched over to the .5ml insulin syringes.....hands down these are the best I have used as not only do I find drawing/injecting quick, virtually pain-free, minimal trauma to tissue, and the .5 ml syringes are more compact and feel better in the hand and top it off with the fact that the scale markings on the barrel can be easier for some to read when measuring accurate doses.

I purchase these as I live in Canada!

BD 324920 INSULIN SYRINGE 0.5ML, 31G X 6MM NEEDLE
Screenshot (880).png



If I were injecting daily or EOD than I would definitely switch over to the .3 ml syringes same gauge/needle length.

US
BD Ultra-Fine Insulin Syringes | 6mm Insulin Syringes | Total Diabetes Supply
Screenshot (881).png

It's worth researching the Z-method or Z-technique to reduce wastage and any light bleeding at the injection site. I originally got this info from a College of Nursing training manual, but there are now several sites out there. Namaste.

The z-track method has been around for decades and although it can be beneficial when injecting the wastage/light bleeding can be minimized to a great extent or avoided simply by injecting using a low dead space fixed needle insulin syringe and using the proper injection technique.

eventually switched over to the .5ml insulin syringes.....hands down these are the best I have used as not only do I find drawing/injecting quick, virtually pain free, minimal trauma to tissue, and the .5 ml syringes are more compact and feel better in the hand and top it off with the fact that the scale markings on the barrel can be easier for some to read when measuring accurate doses.

I switched over to the .5s and I'll never go back to anything else. I use the Covidien monoject with low dead space syringes.

For Canadians on trt:

Syringes (Sure Comfort, BD, Terumo) FREE SHIPPING



BD ALCOHOL SWABS
Screenshot (1845).png


BD SAFE-CLIP Needle Clipping & Storage Device (Stores 1,500 Needles)






Sure Comfort Insulin Syringes 27-31 gauge (1/2",5/16") box 100





Perfect for subcutaneous injections (low dose T daily/EOD)

BD INSULIN SYRINGE 0.5ML, 31G x 6MM NEEDLE
Screenshot (1847).png


BD INSULIN SYRINGE 0.3ML, 31G x 8MM NEEDLE

Screenshot (1848).png

madman how long do you take to inject once the needle is in? to inject your 75 mg e3.5d? I count 5 seconds during my injection time to push the plunger all the way down using a 27g 1/2 inch.

in 1992, I started with 1 1/2 inch 23 Gauge needles in the glutes (using an 18-inch Gauge needle for loading). I am so glad we have found out that deep injections are not needed in TRT!
What do you use now? I'm looking at moving from 23g x 1.5" to 27g x 1.25", or maybe even 29g x 0.5". I inject med. into quads.

For Canadians on trt:

Syringes (Sure Comfort, BD, Terumo) FREE SHIPPING




BD ALCOHOL SWABS
View attachment 10543

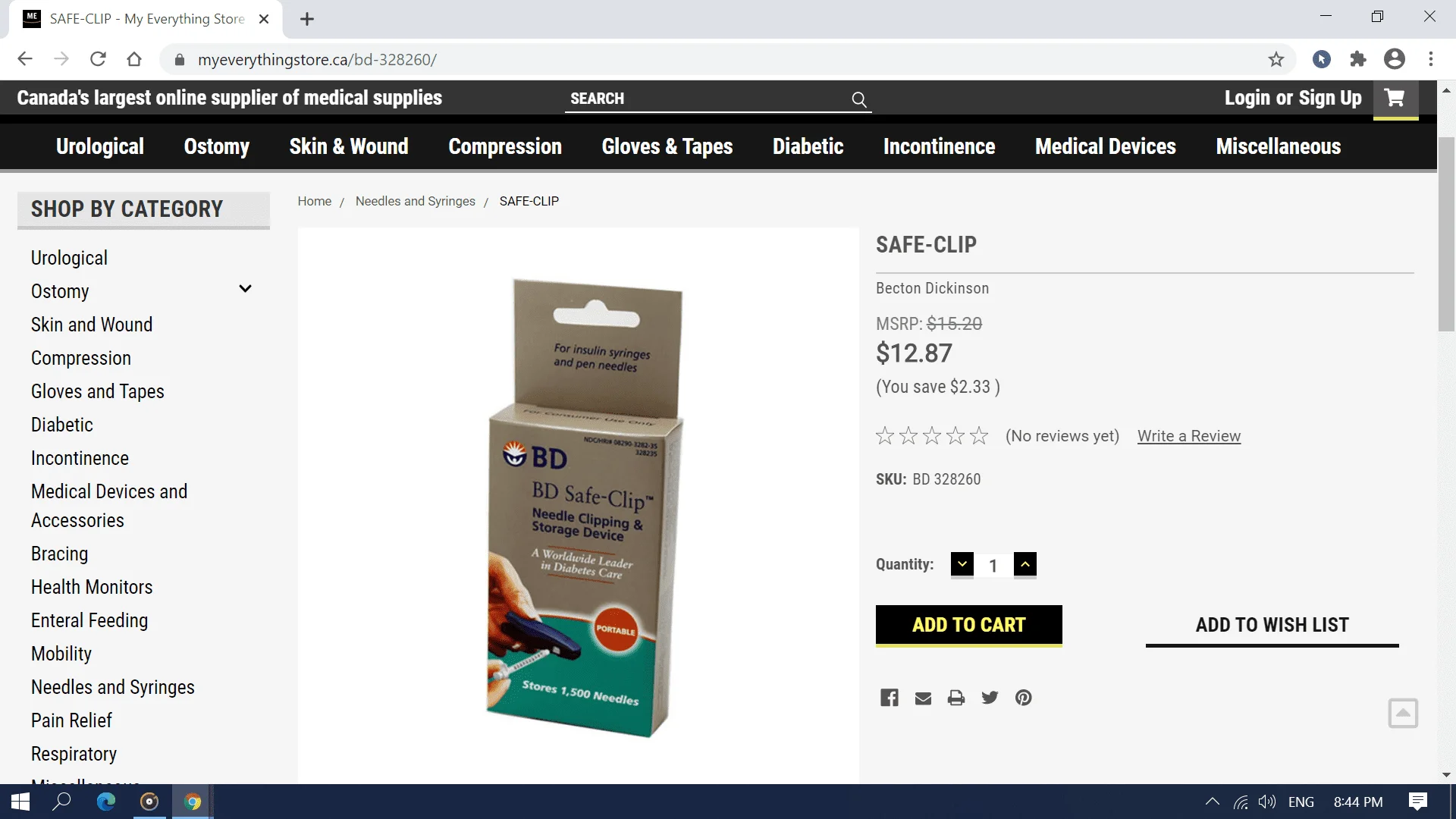

BD SAFE-CLIP Needle Clipping & Storage Device (Stores 1,500 Needles)
View attachment 10544

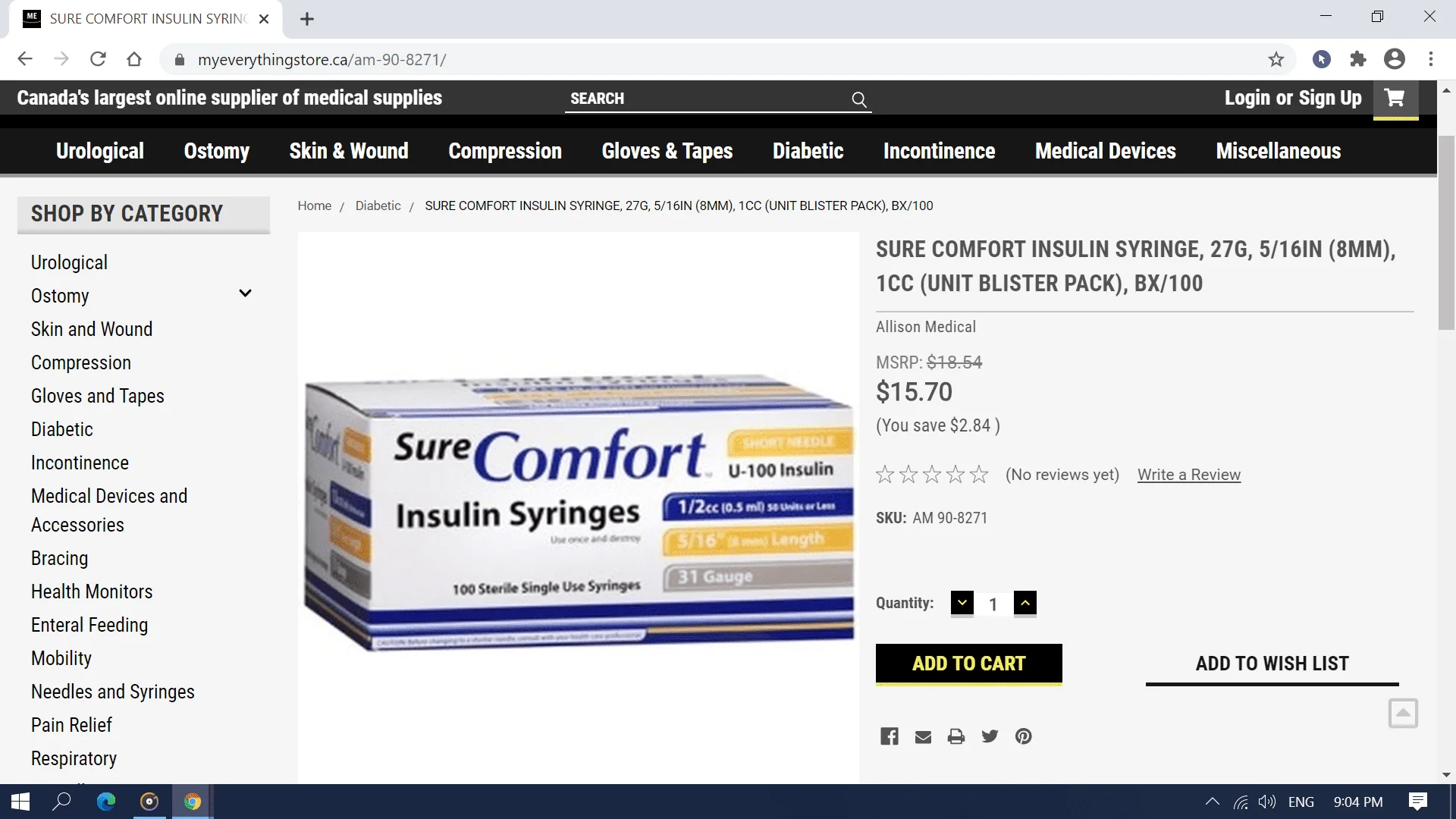

Sure Comfort Insulin Syringes 27-31 gauge (1/2",5/16") box 100
View attachment 10547








Perfect for subcutaneous injections (low dose T daily/EOD)

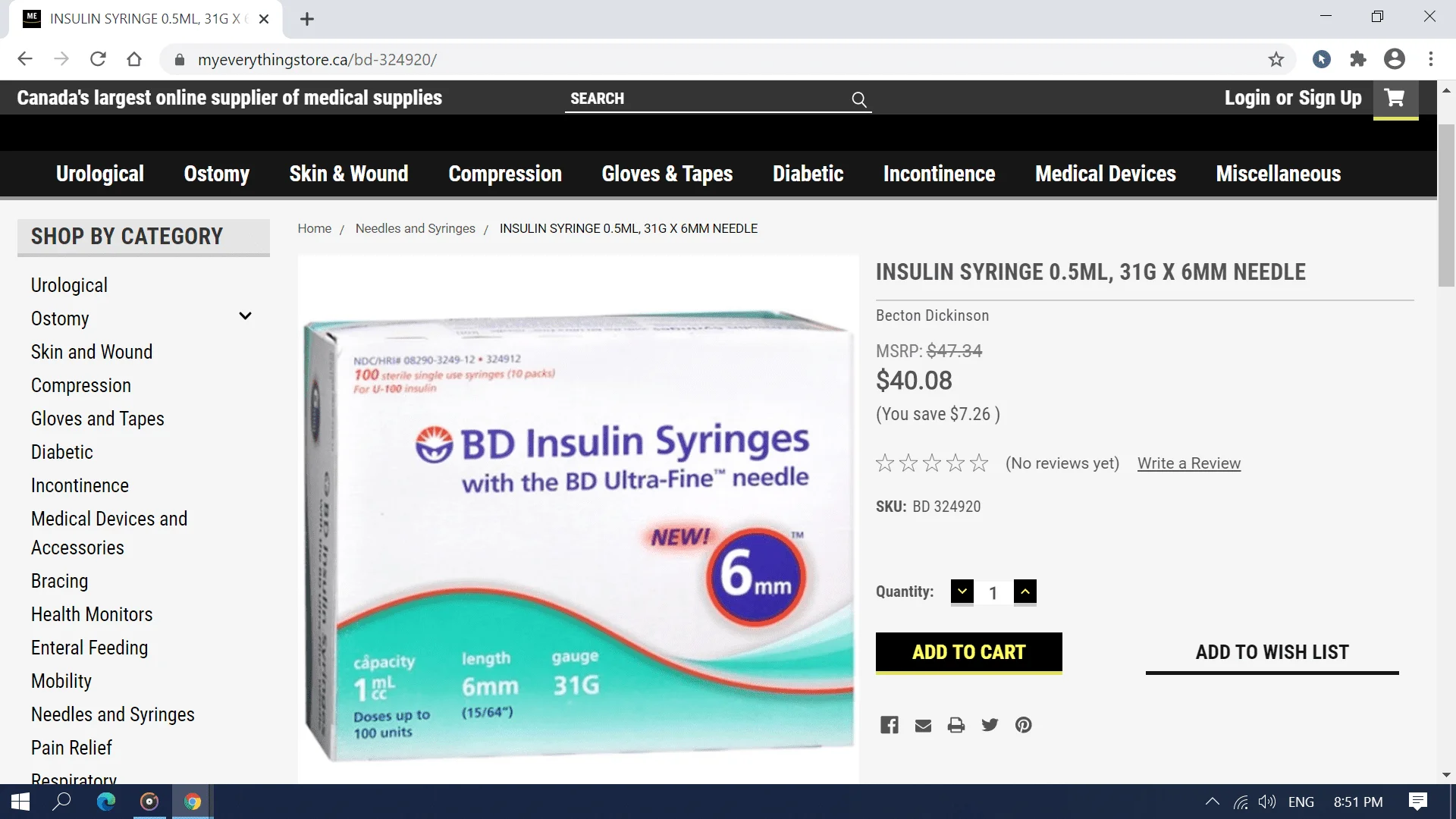

BD INSULIN SYRINGE 0.5ML, 31G x 6MM NEEDLE
View attachment 10545

BD INSULIN SYRINGE 0.3ML, 31G x 8MM NEEDLE

View attachment 10546
No problem pushing cyp. oil through these 31g needles? And here I am on the fence, leaning towards going with 27g, concerned that a 29g might be problematic. 29g, let alone 31g, sure would make daily or EOD injections easier to run with.
